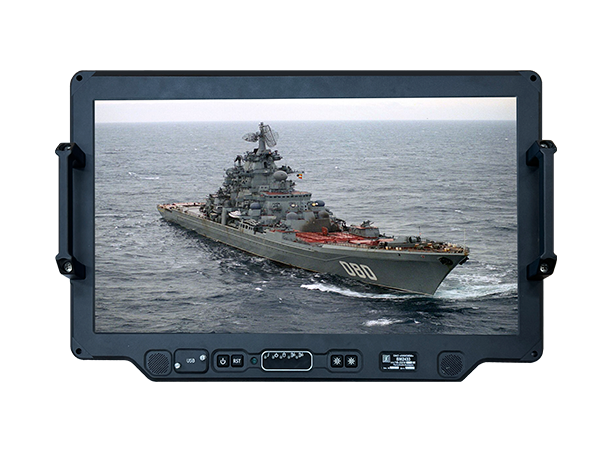

ВМ2433 electronic panel computer is a special-purpose panel computer in a monoblock design with a touch screen and a USB compartment on the front panel, designed for use in information processing systems on stationary and mobile objects with harsh operating conditions.
The product is operable when exposed to sinusoidal vibration (amplitude up to 5g), single (up to 100g) and multiple (up to 15g) impacts, rocking, salt fog, mold fungi and other external factors.
The product can be placed in industrial workshops, under the influence of aggressive environments.
Характеристики и параметры
|
Calculating machine |
|
|---|---|
|
processor type |
i3-i7, Celeron 6305E |
|
RAM |
8 Gb |
|
SSD |
512 Gb |
|
video controller |
integrated into the chipset |
|
software compatibility |
Windows, Linux |
|
Display |
|
|
screen diagonal |
21,5” |
|
resolution (pixels) |
1920 × 1080 |
|
|
protective glass |
|

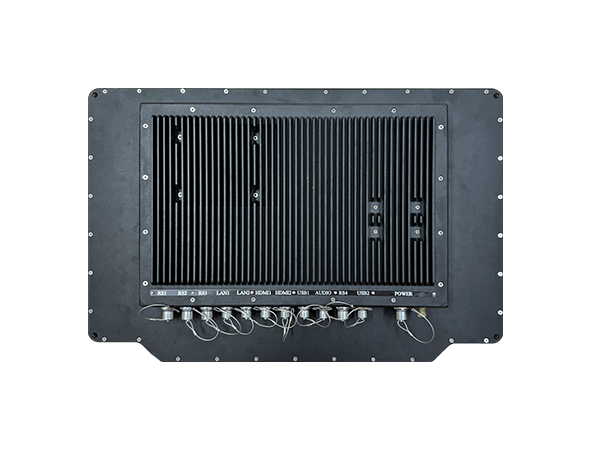

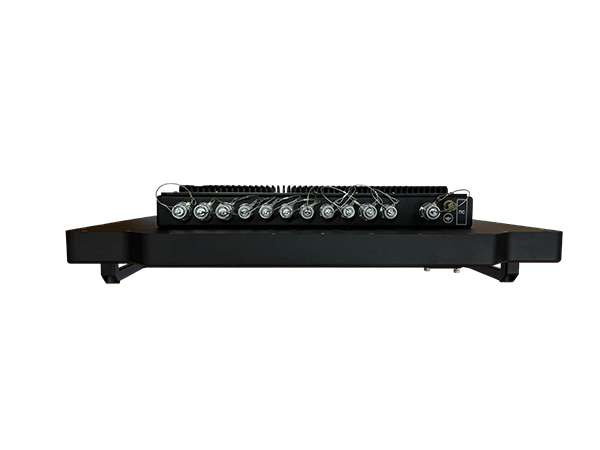

Interfaces |
|
|
|
USB – 4 channels |
|
|
Ethernet 10/100/1000 – 2 channels |
|
|
RS-232/422/485 – 4 channels |
|
|
HDMI – 2 channels |
|
|
|
|
|
mic/line input |
|
|
acoustic system |
|
Power supply |
|
|
supply voltage |
18–32 V (~230 V via voltage converter ВМЕ008) |
|
power consumption |
no more than 200 W |
|
Weight |
9,9 kg |
|
Dimensions |
535 × 358 × 128 mm |
|
Operating condition |
|
|
operating ambient temperature |
– 40°С … +50°С |
|
limiting ambient temperature |
– 50°С … +60°С |
|
interference |
single – 100g, (1–5) ms; multiple – 15g, (5–10) ms |
|
sinusoidal vibration |
(1–80) Hz, 4g |
|
high air humidity |
up to 98% at +35° |
|
atmosphere pressure |
60…107 kPa |
|
pitching and tilting |
±45° (7 – 16) s long-term (without time and angle limit) slopes |
|
salt fog |
+ |
Parameters
Weight: 9,9 kg
Dimensions: 535 × 358 × 128 mm
