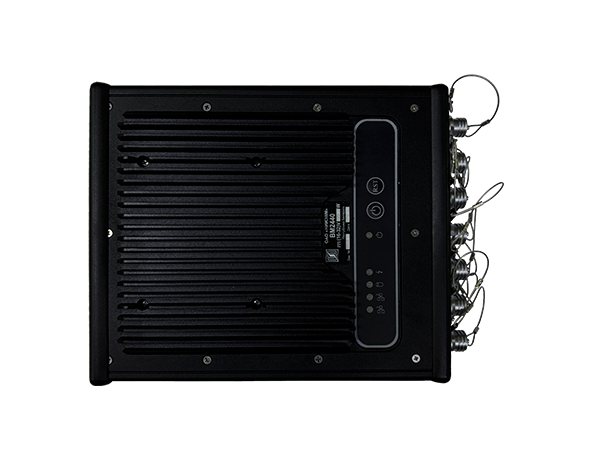

The BM2440 computer is designed as a system unit with air (fanless) cooling. Designed for installation in various vehicles.
The product remains operational under the influence of precipitation, high humidity, high (low) atmospheric pressure, solar radiation, static and dynamic dust in a wide temperature range (from minus 40°C to plus 50°C).
The product is operable when exposed to sinusoidal vibration (amplitude up to 5g), single (up to 100g) and multiple (up to 15g) impacts, rocking, salt fog, mold fungi and other external factors.
BM2440 can be placed in industrial workshops exposed to agressive environments.
Характеристики и параметры
|
Calculating machine |
|
|---|---|
|
processor type |
i3-i7, Celeron 6305E |
|
RAM |
8 Gb |
|
SSD |
512 Gb |
|
video controller |
integrated into the chipset |
|
software compatibility |
Windows, Linux |
|
Interfaces |
|
|
|
USB – 4 channels |
|
|
Ethernet 10/100/1000 – 2 channels |
|
|
RS-232/422/485 – 4 channels |
|
|
|
|
|
mic/line input |
|
|
audio output (stereo) |
|
|
possibility to install 3 modules M.2 (NGFF) |
|
Power supply |
|
|
supply voltage |
16–32 V (~230 V via voltage converter ВМЕ008) |
|
battery |
10 A/h |
|
power consumption |
no more than 200 W |
|
battery continuous operation time under normal conditions |
no more than 5 hours |
|
Weight |
no more than 3,8 kg |
|
Dimensions |
245 × 231 × 91 mm |
|
Operating condition |
|
|
operating ambient temperature |
– 40°С … +50°С (– 20°С when operating from the battery) |
|
limiting ambient temperature |
– 50°С … +60°С |
|
interference |
single – 100g, (1–5) ms; multiple – 15g, (5–10) ms |
|
sinusoidal vibration |
(1–80) Hz, 4g |
|
high air humidity |
up to 100% at +35° |
|
atmosphere pressure |
60…107 kPa |
|
pitching and tilting |
±45° (7 – 16) s long-term (without time and angle limit) slopes |
|
salt fog |
+ |
Parameters
Weight: 3,8 kg
Dimensions: 245 × 231 × 91 mm
