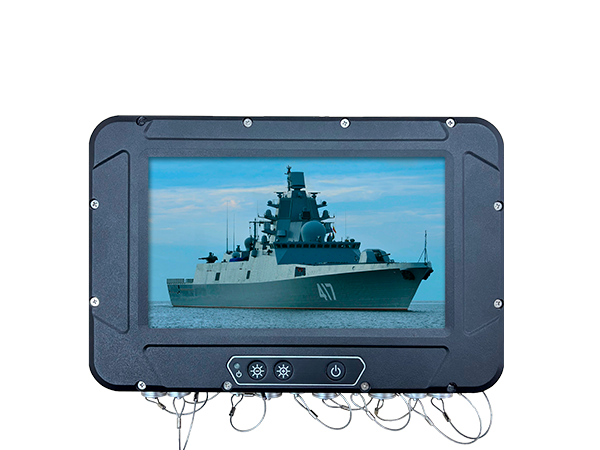

BM2456 is a portable computer designed as a tablet. Designed for operation in the field under the influence of precipitation, high humidity, high (low) atmospheric pressure, solar radiation, static and dynamic dust in a wide temperature range (from minus 50°C to plus 55°C). The product can be used as a universal calculator installed in various vehicles.
The product is operable when exposed to sinusoidal vibration (amplitude up to 5g), single (up to 100g) and multiple (up to 15g) impacts, rocking, salt fog, mold fungi and other external factors.
The tablet can be placed in industrial shops, exposed to agressive environments.
Характеристики и параметры
|
Calculating machine |
|
|---|---|
|
processor type |
i5-8365UE |
|
RAM |
8 Gb |
|
SSD |
256 Gb – 1 Tb, 1 pcs. |
|
video controller |
Intel UHD Graphics 620 |
|
software compatibility |
Windows, Linux, QNX |
|
Display |
LCD |
|
screen diagonal |
10,1” |
|
resolution (pixels) |
1280 × 800 |
|
Touch Screen |
projection-capacitive |
|

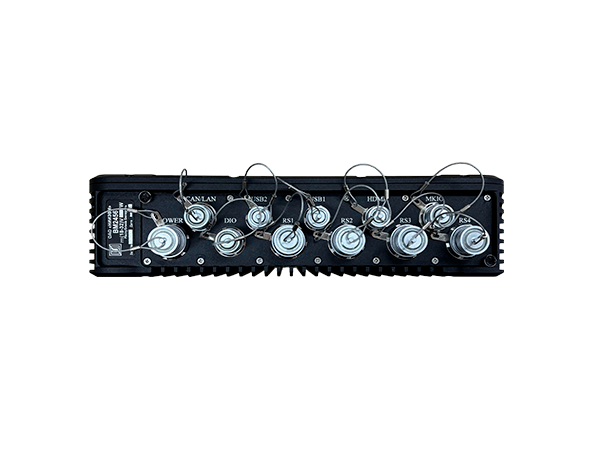

Interfaces |
|
|
|
USB – 2 channels |
|
|
Ethernet 10/100/1000 – 1 channel |
|
|
RS-232/422/485 – 4 channels |
|
|
CAN – 1 channel |
|
|
HDMI – 1 channel |
|
|
MKIO (GOST P 52070-2003) – 2 redundant channels |
|
|
|
|
|
discrete |
|
|
possibility to install 3 modules M.2 (NGFF) |
|
|
discrete input– 8 channels |
|
Power supply |
|
|
supply voltage |
16–32 V |
|
power consumption |
no more than 100 W |
|
Weight |
5 kg |
|
Dimensions |
282 × 217 × 70 mm |
|
Operating condition |
|
|
operating ambient temperature |
– 50°С … +55°С |
|
limiting ambient temperature |
– 65°С … +70°С |
|
interference |
single – 75g, (1–5) ms; multiple – 20g, (1–15) ms |
|
sinusoidal vibration |
(1–500) Hz, 6g |
|
high air humidity |
up to 100% at +35° |
|
atmosphere pressure |
60…107 kPa |
|
static dust (concentration – circulation rate) |
(5 ± 2) g/m³ – (0,5–1) m/s |
|
atmospheric condensed precipitation |
+ |
|
salt fog |
+ |
Parameters
Weight: 5 kg
Dimensions: 282 × 217 × 70 mm
